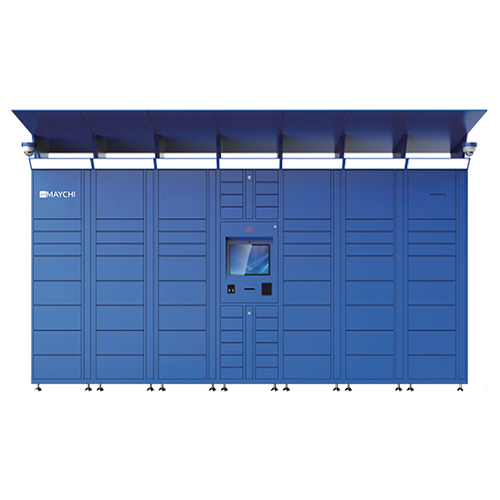

Smart Metal Parcel Locker
2026/2/4
| Type | Specifications | Parameter Content |
| Product Basic Information | Product Model | MZ-44CQ-Z |
| Product Type |
Metal Storge Parcel Locker |
|
| Color | Blue Box, Blue Door | |
| Door Panel Material | Cold-Rolled Steel Plate (Spray-Painted) | |
| Box Material | Cold-Rolled Steel Plate (Spray-Painted) | |
| Number of Grid | 48 | |
| Overall Dimensions | 990mm*450mm*2200mm | |
| Small Grid Size/Quantity | 310mm*450mm*90mm/39/35 | |
| Size/Quantity of Middle-Sized Grid | 310*450*190/6 | |
| Large Grid Size/Quantity | 310*450*290/3 | |
| Net Weight of Single Unit (kg) | 150 | |
| Electrical Parameters | Industrial All-In-One PC | Processor: Quad-Core ARM Cortex-A55 RK3568 |
| Storage：DDR→2G + FLASH→16G（eMMC） | ||
| Screen: 10.1 Inches, 800*1280@60HZ | ||
| Network: 4G: Compatible With All Networks, Ethernet: 10/100Mbps | ||
| Short-Range Communication: 2.4G-WIFI, BLE4.0-Bluetooth | ||
| Audio Output: Dual Channel 5W Max | ||
| Interfaces: 4 USB2.0, 2 RS485, 2 RS232 | ||
| Power Supply: DC9~24V | ||
| Lock Control Panel | Operating Voltage: DC~24V | |
| Number of Lock Controls: 32-channel With Feedback | ||
| Address Coding: Buttons + Dual Eight-Digit Display | ||
| Communication Mode: 485 Communication | ||
| Power Adapter | Input Voltage: AC~220V | |
| Output Voltage: DC~24V | ||
| Output Power: 60W | ||
| Electromagnetic Lock | Operating Voltage: DC~12V | |
| Operating Current: 2.5A | ||
| Scanner | / | |
| Numeric Keypad | / | |
| Speaker | 4Ω3W |
