Smart ABS Parcel Locker
2026/2/4
|
Specifications |
Parameter Content |
| Product Model | / |
| Product Type |
Building Block Storage Parcel Locker |
|
Color |
Black Box Gray Door |
| Door Panel Material | ABS |
|
Box Material |
PC-ABS |
| Number of Grid | 16-32 |
| Outer Dimensions (mm) | 390*388*2130 |
| Grid Size | See Attached Figure |
| Net Depth of the Grid (mm) | 370 |
| Net Weight of Single Unit (kg) | 25-35 |
|
Industrial All-In-One PC |
Processor: Quad-Core ARM Cortex-A55 RK3568 |
| Storage: DDR→4G + FLASH→32G（eMMC） | |
| Screen: 10.1 Inches, 800*1280@60HZ | |
| Network: 4G: Compatible With All Networks, Ethernet: 10/100Mbps | |
| Short-Range Communication: 2.4G-WIFI, BLE4.0-Bluetooth | |
| Audio Output: Dual-Channel 5W Max | |
| Interfaces: 4 USB2.0, 2 RS485, 2 RS232 | |
| Power Supply: DC9~24V | |
|
Lock Control Panel |
Operating Voltage: DC ~ 24V |
| Number of Lock Controls: 32-Channel With Feedback | |
| Address Coding: Button + Dual Eight-Digit Display | |
| Communication Mode: 485 Communication | |
|
Power Adapter |
Input Voltage: AC~220V |
| Output Voltage: DC~24V | |
| Output Power: 60W | |
|
Electromagnetic Lock |
Operating Voltage: DC~12V |
| Operating Current: 2.5A | |
|
Dialing Method |
Auto Dialing |
|
Speaker |
4Ω3W |

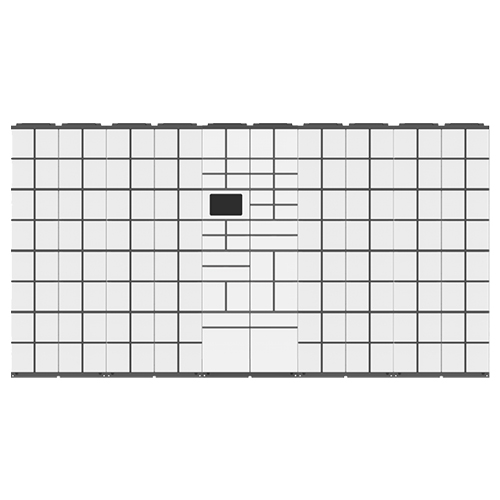

Attached Figure
